Hunter PGJ/PGH Rotor Description

Prices for these products are listed on our price sheets.(Please note: we have a minimum order size of .)

Note: All Hunter PGJ rotor srinklers come with a set of 12 nozzles.
You may also need to order a Hunter arc adjustment wrench (not included with each sprinkler) for adjusting the arc and radius of the sprinkler.
Click here to learn more about Hunter PGJ nozzles.

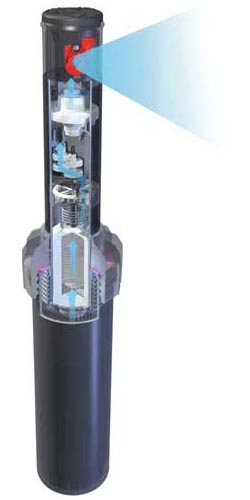

Hunter PGJ/PGH Rotors

PGJ Applications

Sprays? Or Time-Saving, Money-Saving, Water-Saving Rotors?

When your landscape has mid-range stations that are long and narrow, the obvious choice would be to install sprays. Yet, the intelligent choice would be a rotor specifically designed to fit this kind of landscape. With the scaled-down-in-size PGJ, two rows of rotors can do the same job as three rows of spray heads. Because PGJ rotors can run on the same station as other rotary sprinklers, they require fewer valves and stations, and, in turn, less trenching, piping and labor. It all adds up to less installation time and lower installation costs (as well as lower watering costs)

PGJ Features and Benefits

Radius adjustment screw
Allows fine tuning of spray, ensures positive nozzle retention, can't be lost

Protective rubber cover
Keeps debris out

40°- 360° adjustable arc
Easily adjustable from top of sprinkler, up, down, wet or dry

Water-lubricated gear drive
Time proven, reliable rotation, year after year

Variable stator
Keeps rotation speed consistent regardless of nozzle size or pressure

Extra large filter screen
Traps more debris without clogging

Optional factory-installed drain check valve
Prevents wet spots, caused by low head drainage

Operating Specifications

• Discharge rate: .64 to 5.3 GPM (0.15 to 1.2 m³/hr; 2.4 to 20.1 l/min)
• Radius: 15' to 37' (4.6 to 11.3 m)
• Recommended pressure range: 30 to 50 PSI (2.1 to 3.4 bars; 206 to 344 kPa)
• Operating pressure range: 20 to 100 PSI (1.4 to 6.9 bars; 137 to 689 kPa)
• Precipitation rates: approximately 0.60" (16 mm) per hour at 40 PSI (2.8 bars; 275 kPa) for spacings from 16' to 37' (4.6 to 11.3 m)
• Nozzle trajectory: approximately 14°

PGJ Models and Dimensions

• Overall height
  • PGJ-00 - 7" (18 cm)
  • PGJ-04 - 7 1/8" (18 cm)
  • PGJ-06 - 9 1/8" (23 cm)
  • PGJ-12 - 16 3/8" (41 cm)
• 1/2" female inlet NPT
• Exposed diameter: 1 1/8" (3 cm)

Warranty

Hunter Industries warrants all Hunter Professional Series PGJ rotors to be free of defects in materials or workmanship under normal use for a period of two (2) years from the original date of manufacture. If a defect in a Hunter product is discovered during the applicable warranty period, Hunter will repair or replace, at it's option, the product or defective part.

Prices for these products are listed on our price sheets.
(Please note: we have a minimum order size of .)

Note: All Hunter PGJ rotor srinklers come with a set of 12 nozzles.
You may also need to order a Hunter arc adjustment wrench (not included with each sprinkler) for adjusting the arc and radius of the sprinkler.
Click here to learn more about Hunter PGJ nozzles.
