Note: All Hunter PGP and PGH rotor srinklers come with a set of 12 nozzles.
You may also need to order a Hunter arc adjustment wrench (not included with each sprinkler) for adjusting the arc and radius of the sprinkler.
Click here to learn more about Hunter PGP nozzles.

Want to learn more about Hunter PGP rotors?
See our PGP installation instruction page for more information.

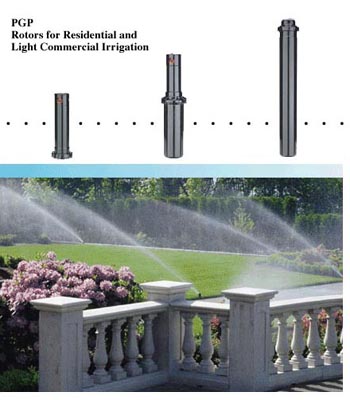

PGP Applications

Meet the First Family of gear driven plastic rotary sprinklers for residential and light commercial irrigation. First because they've outsold and outperformed all others in their class since we introduced the original model in 1981. By choosing these exceptional Hunter products, you endow your property with one of it's greatest assets: Durable, trouble-free rotary sprinklers with precision engineered nozzles for water-saving efficiency and consistently beautiful results. No brown spots near the head or anywhere. Evenly distributed water at a rate your soil can absorb. Driven by today's most advanced technology including the industry's best gear mechanism. Yours for years of flawless service. For quiet beauty all around you. And your peace of mind.

PGP Features and Benefits

Integral rubber cover
Keeps dirt out, won't fall off

12 standard or 7 low angle nozzles
Outstanding flexibility an superior water distribution

40° - 360° adjustable arc or full-circle versions
For fastest, hassle-free adjustment, wet or dry

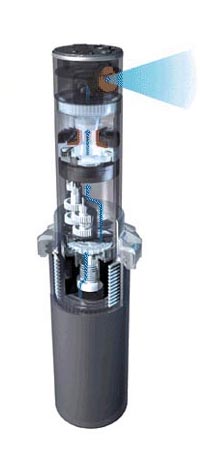

Proven long-life gear drive
First introduced over 15 years ago and still continuously improved

Large dirty water screen
Puts an end to nozzle clogging

Operating Specifications

• Discharge rate: 0.5 to 14.4 gpm (0.11 to 3.27 m3/hr, 1.9 to 54.5 l/min)
• Radius: 22 feet to 52 feet (6.7 to 15.9 m)
• Pressure range: 30 to 70 psi (2.1 to 4.8 bars, 206 to 482 kPa)
• Precipitation rates: approximately 0.4 inches (10 mm) per hour at 50 psi (3.4 bars, 344 kPa) for spacings from 25 feet to 45 feet (7.6 to 13.7 m)
• Nozzle trajectory
  • standard: 25°
  • low angle: 13°

Dimensions

• Overall height
  • PGS- 7 3/8 inches (19 cm)
      (no pop-up feature- fixed position)
  • PGP- 7 3/8 inches (19 cm)
      (4 inch pop-up height)
  • PGH- 17 inches (43 cm)
      (12 inch pop-up height)
• 3/4 inch female inlet NPT
• Exposed diameter: 1 3/4 inch (4 cm)

Warranty

Hunter Industries warrants all Hunter Professional Series PGP rotors to be free of defects in materials or workmanship under normal use for a period of two (2) years from the original date of manufacture. If a defect in a Hunter product is discovered during the applicable warranty period, Hunter will repair or replace, at it's option, the product or defective part.

Prices for these products are listed on our price sheets.
(Please note: we have a minimum order size of .)

Note: All Hunter PGP and PGH rotor srinklers come with a set of 12 nozzles.
You may also need to order a Hunter arc adjustment wrench (not included with each sprinkler) for adjusting the arc and radius of the sprinkler.
Click here to learn more about Hunter PGP nozzles.

Want to learn more about Hunter PGP rotors?
See our PGP installation instruction page for more information.
