Hunter ET System Sensor

It's easy to purchase Hunter ET System Sensor
from Travis Irrigation. Find out how to order now!

Prices for these products are listed on our price sheets.

ET System Applications

Take the guesswork out of irrigation scheduling, by tracking your local microclimate and automatically calculating a scientific irrigation program! The Hunter ET System is an easy-to-add-on accessory (for any Hunter controller that operates with a SmartPort® system) that measures key climatic conditions, and uses them to calculate your local Evapotranspiration (ET) factor. The ET is then downloaded into your irrigation controller to create an irrigation program that is just right for your sprinkler system, plants, and soil conditions. By taking into account the rate at which water is consumed by weather conditions, the ET System will initiate a new schedule to replenish only the water that is actually needed. And Hunter's WiltGard™ technology can intervene to trigger protective watering when extreme conditions threaten your plants. The result is a dramatic savings in your water bill (about 30%, on average), healthier root zones, and your participation in conserving our precious natural resources.

Hunter ET System

ET System Features and Benefits

Calculates Evapotranspiration (ET) for your local microclimate
Automatically creates a scientific program and downloads it to your standard controller

Saves water and money
Minimizes water waste, applies just the water your plants need

WiltGard™ technology
Enables it to trigger protective watering when extreme conditions threaten your plants

Hunter ET System

True station-specific database determines appropriate watering
ET information combines with each station's particular plant, soil, sun, and sprinkler data

Non-volatile memory
Retains your program and site information in event of a power failure

Easily upgrades most Hunter controllers to weather-based control
No high voltage AC wiring required

Dimensions

ET Module
6" H x 4" W x 1.75" D
(153 mm H x 102 mm W x 45 mm D)

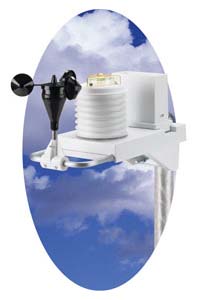

ET Sensor
10 1/2" H x 7 1/4" W x 12 1/8" D
(26.7 mm H x 18.4 mm W x 30.8 mm D)
ET Sensor with pole brackets
10 1/2" H x 7 1/4" W x 13" D
(26.7 mm H x 18.4 mm W x 33.0 mm D)

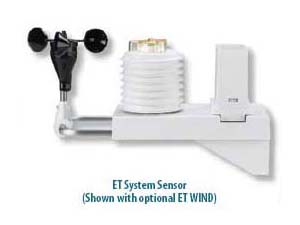

ET Sensor with ET Wind
11 1/2" H x 7 1/4" W x 19 7/8" D
(29.2 mm H x 18.4 mm W x 50.5 mm D)
ET Sensor and ET Wind with pole brackets
11 1/2" H x 7 1/4" W x 20 3/4" D
(29.2 mm H x 18.4 mm W x 52.7 mm D)

Specifications

Power Input:
- 24 VAC, 50/60Hz (from host controller)
Current draw: 20 mA, max
Non-volatile memory
Replaceable 10-year lithium battery
Wiring:
- ET Module power, SmartPort
- ET Sensor, 2 x 18 AWG/1 mm

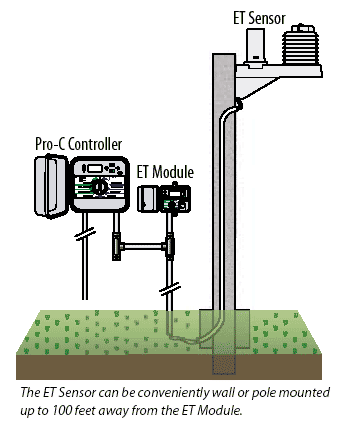

Max distance of Module from controller:
- 6 ft./2 m
Max distance of Sensor from module:
- 100 ft./30 m
