Hunter I-40 Rotors

Prices for these products are listed on our price sheets.
(Please note: we have a minimum order size of 30 dollars .)

Note: All Hunter I-40 rotor srinklers come with a full rack of 6 standard nozzles.
Click here to learn more about Hunter I-40 nozzles.

I-40 Applications

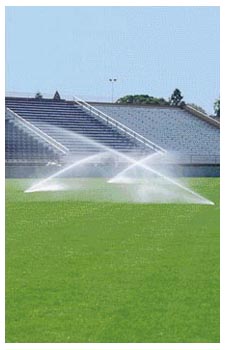

Possessing an ability to deliver water accurately and efficiently at distances up to 74 feet, our top-of-the-line commercial rotor has earned the distinction of being the number one choice at sports facilities the world over. But the I-40 is not only a favorite at stadiums, courts, practice fields and other playing surfaces, the long distance specialist is also a proven performer at parks and commercial sites as well. It's no wonder why with features like the ProTech^(TM) safety system, two secondary nozzles that offer exceptional mid-range and close-in coverage, a stainless steel riser, the factory-installed drain check valve, and a new self-adjusting variable stator that enhances the life of the gear drive.

ProTech^(TM): When it comes to safety, less is more.
When rotors are installed at sports facilities- whether for football, baseball, soccer or lacrosse- the less exposed surface area on the rotor, the more safe that playing surface will be. With our ProTech^(TM) safety system, the revealed portion of our heavy duty rubber cover is of the smallest possible size to minimize the possibility of contact with athletic participants or children at play. Also, with a rubber boot surrounding the rubber cover, there are no metal or hard plastic components close to the surface, so the entire top of our I-40 comercial rotors are flexible and user friendly. That's why, if limiting your facility's liability concerns is a top priority, the bottom line is you need the ProTech^(TM) safety system.

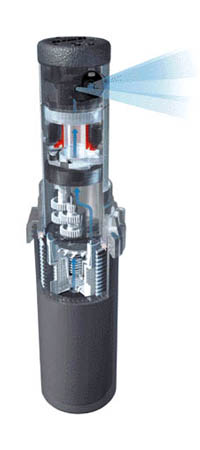

I-40 Features and Benefits

ProTech^(TM) safety system
Small exposed heavy duty rubber cover and boot keeps
playing areas safe

Primary nozzle system: 6 interchangeable nozzles
Uniform coverage with radius from 45 to 74 feet

Easy arc adjustment (40° - 360°)
Up, down, wet or dry with through the top convenience

Stainless steel riser and spring
For long term positive retraction

Proven gear drive
Time-tested and now improved for even longer life

NEW VStat^(TM) self adjusting stator
No stator rings required, drives with more power and adds
years to sprinkler life

Drain check valve for up to 15 ft. elevation change
Saves water, reduces liability

Extreme uniformity is as simple as 1, 2, 3.
Trying to guarantee no brown spots and attain the greatest degree of water efficiency at the same time? The I-40's wind resistant three-nozzle design is the answer. No other rotor can deliver the level of uniformity that Hunter's top-of-the-line rotor can in the 60-70 foot range. And that distinction didn't just happen yesterday. The I-40's track record is time proven- it's been field tested for more than 15 years at the finest facilities the world over.

Operating Specifications

Discharge rate: 7.0 to 27.5 gpm (1.59 to 6.25 m3/hr, 26.5 to 104.1 l/min)
Radius for I-40: 45 feet to 74 feet (13.7 to 22.6 m)
Radius for I-42: 41 feet to 65 feet (12.5 to 19.8 m)
Pressure range: 40 to 90 psi (2.8 to 6.2 bars, 275 to 620 kPa)
Precipitation rates: approximately 0.33 inches (8 mm) per hour to 0.48 inches (12 mm) per hour (for 360° sprinkler)
Nozzle trajectory: 25°

Dimensions

Pop-up height: 3 1/2" (9 cm)
Overall height: 7 7/8 inches (20 cm)
Female inlet: 1" NPT
Exposed diameter: 2" (5 cm)

Warranty

Hunter Industries warrants all Hunter Professional Series I40 rotors to be free of defects in materials or workmanship under normal use for a period of five (5) years from the original date of manufacture. If a defect in a Hunter product is discovered during the applicable warranty period, Hunter will repair or replace, at it's option, the product or defective part.

Prices for these products are listed on our price sheets.

Note: All Hunter I-40 rotor srinklers come with a full rack of 6 standard nozzles.
You may also need to order a Hunter arc adjustment wrench (not included with each sprinkler) for adjusting the arc and radius of the sprinkler.
Click here to learn more about Hunter I-40 nozzles.
