XC Applications

Entry-level residential controller with extra flexibility, features, and memory.
The new Hunter XC presents handy water management control in a compact, user-friendly controller that is capable of meeting the irrigation requirements for a wide range of residential landscapes. Simply put, the XC brings a whole lot extra to a small controller. Like extra power the XC offers a choice of 2-, 4-, 6-, and 8-station models, each with plenty of might to operate one or two valves per station plus a pump start relay or master valve. Extra features including global seasonal adjustment and a 365-day calendar to make water savings easier, plus a default system that permits retrieval of the original program entered into the controller. Extra flexibility with three programs (each with four start times), multiple scheduling formats, and the ability to select sensor input by station. And extra memory with a non-volatile on-board program backup and a high-energy lithium battery for timekeeping to assure you'll never have to reprogram the controller due to power outages. The choice for those who demand outstanding reliability, the XC is where to turn for extra peace of mind.

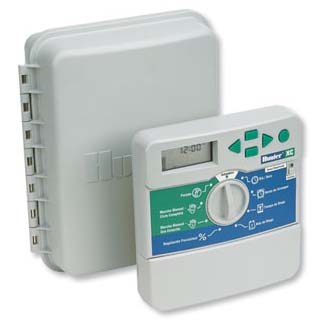

Hunter XC Controllers

XC Features and Benefits

Easy dial programming
Enhanced dial and push button programming makes the XC easy to operate

Global seasonal adjustment (0% to 150%)
Easy on-screen adjustment alters the amount of watering to accommodate changing weather conditions

3 independent programs with 4 start times each
Accommodates a wide range of watering requirements

Non-volatile memory
Excellent insurance against unreliable power; retains current time, day, and program data

Choice of independent day scheduling
For maximum watering flexibility (select days of the week, true odd/even, or interval watering)

Weather sensor compatible
The XC is compatible with rain, freeze, wind and other micro-switch type sensors. Each station can be programmed individually to accept or override the weather sensor input.

Easy-retrieve memory
Ability to retrieve your preferred program, stored in backup memory

Replaceable lithium battery (included)
For backup timekeeping and to enable remote programming of the controller

Dimensions:

• Indoor Model:
  • Height: 6 1/2 inches (16.5 cm)
  • Width: 5 3/4 inches (14.6 cm)
  • Depth: 2 inches (5 cm)

• Outdoor Model:
  • Height: 8 5/8 inches (22 cm)
  • Width: 7 inches (17.8 cm)
  • Depth: 3 3/4 inches (9.5 cm)

Specifications

• Outdoor models, transformer with internal junction box
• Indoor models, with plug-in transformer
• 3 programs, A, B, C
• Start times: 4 per day, per program for up to 12 daily starts
• Station run time: 0 minutes to 4 hours in 1-minute increments
• Day schedule: 7-day calendar true odd/even programming with 365-day calendar clock, or interval watering (up to 31 days)
• AM/PM or 24 hour clock option
• Automated chronological ordering of start times/start time stacking
• One-button manual start and advance
• Seasonal adjust: 0% to 150%
• Transformer input: 120VAC, 60 Hz
• Transformer output: 24VAC, 1.0 amps (capable of operating equivalent of 3 solenoids simultaneously)
• Station output: 0.56 amps
• Electronic short circuit detection
• Battery: 3V lithium (included) for remote programming and timekeeping, not required for program backup
• Programmable delay between stations
• Rain sensor bypass switch compatible with microswitch based sensors, displays when sensor is active
• Programmable sensor input by station
• Original program can be saved in non-volatile memory and retrieved later if needed
• Programmable rain delay from 1 to 7 days
• Programmable event day off allows specific day(s) to be designated as always "off"
• Hunter Quick Check™ helps troubleshoot field wiring issues
• Test program feature allows for quick system checks
• UL Listed/CE Approved
• Transformer input: 120/230 VAC, 50/60Hz
• Transformer output: 24VAC, 1.5A (40VA)
• Station output: 24VAC, 0.56A
• Maximum total output: 24VAC, 1.4A includes master valve
• Master Valve output: 24VAC, 0.28A
• Rain Sensor override compatible with most brands utilizing a normally closed micro switch

Warranty

Hunter Industries warrants all Hunter Professional Series XC controllers to be free of defects in materials or workmanship under normal use for a period of two (2) years from the original date of manufacture. If a defect in a Hunter product is discovered during the applicable warranty period, Hunter will repair or replace, at it's option, the product or defective part.
