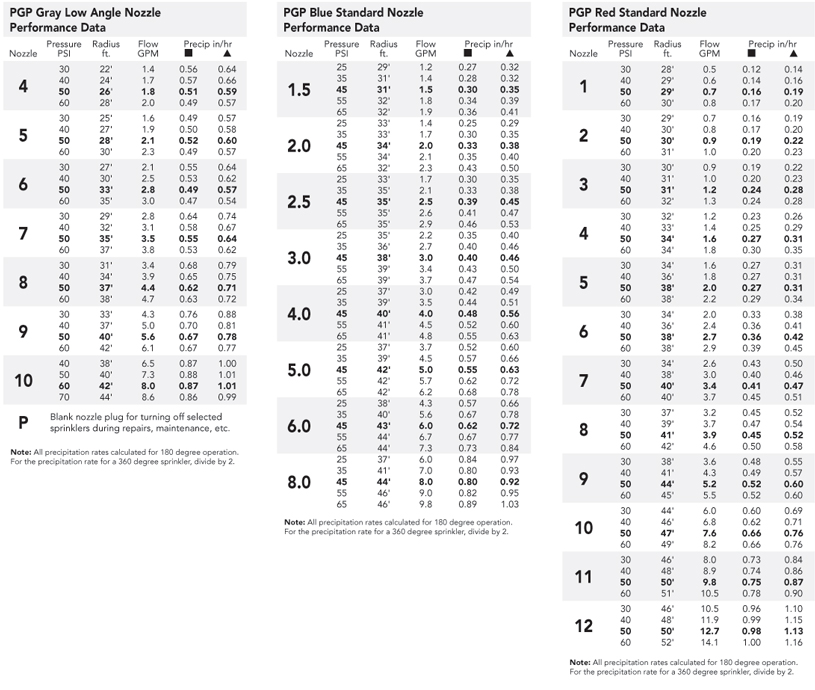

All Hunter PGP and PGH rotor sprinklers come with a set of 12 standard (red) nozzles.
Low angle (gray) nozzles are available for order as well.
Learn more about Hunter PGP rotors.
| Standard PGP Nozzles (Red) (25 degree trajectory) |
Low Angle Nozzles (Gray) (13 degree trajectory) |
||||||||
| Nozzle | PSI | Radius (ft.) | GPM | Nozzle | PSI | Radius (ft.) | GPM | ||
| 1 | 30 | 28 | 0.5 | 4 | 30 | 22 | 1.2 | ||
| 40 | 29 | 0.6 | 40 | 24 | 1.4 | ||||
| 50 | 29 | 0.7 | 50 | 26 | 1.6 | ||||
| 60 | 30 | 0.8 | 60 | 28 | 1.8 | ||||
| 2 | 30 | 29 | 0.7 | 5 | 30 | 25 | 1.6 | ||
| 40 | 30 | 0.8 | 40 | 27 | 1.8 | ||||
| 50 | 30 | 0.9 | 50 | 28 | 2.0 | ||||
| 60 | 31 | 1.0 | 60 | 30 | 2.2 | ||||
| 3 | 30 | 30 | 0.9 | 6 | 30 | 27 | 2.0 | ||
| 40 | 31 | 1.0 | 40 | 30 | 2.4 | ||||
| 50 | 31 | 1.2 | 50 | 33 | 2.7 | ||||
| 60 | 32 | 1.3 | 60 | 35 | 2.9 | ||||
| 4 | 30 | 32 | 1.2 | 7 | 30 | 29 | 2.6 | ||
| 40 | 33 | 1.4 | 40 | 32 | 3.0 | ||||
| 50 | 34 | 1.6 | 50 | 35 | 3.4 | ||||
| 60 | 34 | 1.8 | 60 | 37 | 3.7 | ||||
| 5 | 30 | 34 | 1.6 | 8 | 30 | 31 | 3.2 | ||
| 40 | 36 | 1.8 | 40 | 34 | 3.7 | ||||
| 50 | 38 | 2.0 | 50 | 37 | 4.2 | ||||
| 60 | 38 | 2.2 | 60 | 38 | 4.6 | ||||
| 6 | 30 | 36 | 2.0 | 9 | 30 | 33 | 4.2 | ||
| 40 | 38 | 2.4 | 40 | 37 | 4.9 | ||||
| 50 | 40 | 2.7 | 50 | 40 | 5.5 | ||||
| 60 | 40 | 2.9 | 60 | 42 | 6.0 | ||||
| 7 | 30 | 36 | 2.6 | 10 | 40 | 38 | 6.0 | ||
| 40 | 40 | 3.0 | 50 | 40 | 6.8 | ||||
| 50 | 42 | 3.4 | 60 | 42 | 7.6 | ||||
| 60 | 42 | 3.7 | 70 | 44 | 8.2 | ||||
| 8 | 30 | 37 | 3.2 | P | Blank nozzle plug for turning | ||||
| 40 | 40 | 3.7 | off selected sprinklers during | ||||||
| 50 | 43 | 4.2 | repairs, maintenance, etc. | ||||||
| 60 | 44 | 4.6 | |||||||
| 9 | 30 | 38 | 4.2 | ||||||
| 40 | 43 | 4.9 | |||||||
| 50 | 46 | 5.5 | Data represent test results in zero | ||||||
| 60 | 47 | 6.0 | wind. Adjust for local conditions. | ||||||
| 10 | 40 | 45 | 6.0 | Radius can be reduced up to 30 | |||||
| 50 | 48 | 6.8 | percent with nozzle retaining screw. | ||||||
| 60 | 49 | 7.8 | (This may alter the uniformity of | ||||||
| 70 | 51 | 8.2 | the spray pattern.) | ||||||
| 11 | 40 | 46 | 8.0 | ||||||
| 50 | 48 | 8.9 | |||||||
| 60 | 50 | 9.8 | |||||||
| 70 | 51 | 10.5 | |||||||
| 12 | 40 | 46 | 11.4 | ||||||
| 50 | 48 | 12.2 | |||||||
| 60 | 50 | 13.2 | |||||||
| 70 | 52 | 14.4 | |||||||
|
