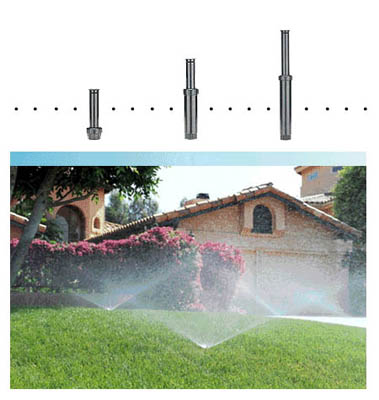

Hunter PS Spray Heads

PS Applications

Fast, precise set-up. Adjusts easily to fit unique landscapes. This is one sprinkler that offers hundreds of solutions.

What could be easier! The Hunter PS spray is a versatile sprinkler. With its adjustable arc that creates arc patterns from 1 to 360 degrees, you'll find there's no need to buy a bunch of odd-pattern nozzles - not when the single, built-in PS nozzle can do it all. With the easy-to-use Hunter adjustment wrench, simply select and set the exact arc you need and you'll keep water precisely where you want it and off buildings and hardscapes. No other spray sprinkler with a single nozzle is this versatile! Or as dirt tolerant - the factory-installed extra-large filter screen traps the maximum amount of debris without interrupting flow and easily removes for cleaning. Fast and easy to set up, designed to fit your budget as effortlessly as it fits your landscape, the PS is Hunter's economical all-in-one sprinkler.

PS Features and Benefits

Adjustable arc nozzle included
One nozzle does the job of many

Color-coded nozzle ID ring
Permits quick identification of radius in field

New improved nozzle design
Even more dirt tolerant than before

Heavy duty wiper seal
Eliminates flow-by

Super extra large filter screen
Captures large debris without interrupting flow

Operating Specifications

• Discharge rate: .2 to 5.3 gpm (0.8 to 20. l/min)
• Radius: 10 feet to 19 feet (3.0 to 5.8 m)
• Pressure range: 20 to 40 psi (1.4 to 2.8 bars; 137 to 275 kPa)
• Precipitation rates: approximately 1.4" to 1.7" (15 to 41 mm) per hour

Models

• PS-04-10-A: 4 inch Pop-up (10 cm), 10 ft. radius (3.0 m), Adjustable arc
• PS-04-12-A: 4 inch Pop-up (10 cm), 12 ft. radius (3.7 m), Adjustable arc
• PS-04-15-A: 4 inch Pop-up (10 cm), 15 ft. radius (4.6 m), Adjustable arc
• PS-04-17-A: 4 inch Pop-up (10 cm), 17 ft. radius (5.2 m), Adjustable arc
• PS-04-5S-S: 4 inch Pop-up (10 cm), 5 ft. x 30 ft. (3.0 m x 9.1 m), Side Strip

Dimensions

• Overall height
  • PS-04: 6 1/2" (16 cm)
• 1/2 inch female inlet NPT
• Exposed diameter: 1 1/4 inch (3 cm)

PS means you'll always have the right head for the job.

With the PS spray, you'll never need to carry dozens of odd-pattern nozzles - just one. Which means you'll always have exactly the head you need for whatever your particular landscape calls for. That's because the PS adjusts to any arc setting between 1° and 360°, and gives you the ability to select the proper radius for what you need to water. The PS is the simplest way to achieve the ultimate in versatility.

Warranty

Hunter Industries warrants all Hunter Professional Series PS sprinklers to be free of defects in materials or workmanship under normal use for a period of two (2) years from the original date of manufacture. If a defect in a Hunter product is discovered during the applicable warranty period, Hunter will repair or replace, at it's option, the product or defective part.

Warranty

Hunter Industries warrants all Hunter Professional Series ICC controllers to be free of defects in materials or workmanship under normal use for a period of two (2) years from the original date of manufacture. If a defect in a Hunter product is discovered during the applicable warranty period, Hunter will repair or replace, at it's option, the product or defective part.
