Hunter PSR Pump Start Relay


It's easy to purchase a Hunter PSR Pump Start Relay from Travis Irrigation. Find out how to order now!

Prices for these products are listed on our price sheets.


Hunter PSR Controller

PSR Applications

PSR: This Pump Start Relay Provides Reliability at an Economical Price

Whether you require the use of a booster pump or pull water directly from a creek or pond, it is imperative that your irrigation system includes a relay that can be counted upon to activate your pump each and every time. The Pump Start Relays have been created to provide that reliability - as well as a lockable NEMA rated enclosure - at an economical price. The PSR Pump Start Relay is fully compatible with all standard 24VAC controllers. It's also designed with user-friendliness in mind, with flying leads that allow for effortless 24 volt connections plus a wide array of "knockouts" on the cabinet to make wiring easy, whatever your particular mounting considerations.


PSR Features and Benefits

NEMA 3R rated locking enclosure
Enclosure has a high rating for outdoor use and is weatherproof, secure, rust-resistant and shock proof

Choice of 3 different models
Internal hardware has been sized accordingly to fit your particular voltage and landscape requirements

Compact design
Enclosure measures 7.5" H x 6.5" W x 4.5" D

Completely UL approved
The PSR-22 meets the demanding electrical requirements necessary for UL approval for both relay and cabinet. The PSR-52 and PSR-53 contain UL approved contactors.

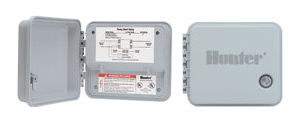

Hunter PSR Relay

Hunter PSR Relay

Electrical Specifications

  • Model: PSR-22
  • Single Phase HP @ 110V: 2 (approx)
  • Single Phase HP @ 230V: 5 (approx)
  • Max Full Load Amps: 22
  • Max Resistive Amps: 22
  • Coil VA Inrush: 65
  • Coil VA Holding: 11

Warranty

Hunter Industries warrants all Hunter Professional Series PSR controllers to be free of defects in materials or workmanship under normal use for a period of two (2) years from the original date of manufacture. If a defect in a Hunter product is discovered during the applicable warranty period, Hunter will repair or replace, at it's option, the product or defective part.


It's easy to purchase a Hunter PSR Pump Start Relay from Travis Irrigation. Find out how to order now!

Prices for these products are listed on our price sheets.
