Rain Bird ASVF Series Valves

Prices for Rain Bird ASVF valves are listed on our price sheets.
(Please note: we have a minimum order size of 30 dollars.)

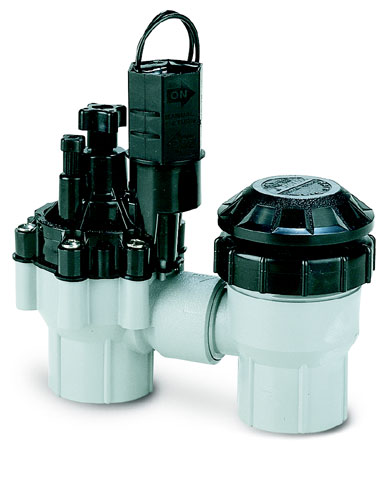

Rain Bird ASVF Valve

Electric Remote-Control Valves
ASVF SERIES
3/4", 1"
(20/27, 26/34)

Primary Application

Economical irrigation valve and atmospheric backflow preventer for residential and light commercial applications.

Features

  • Combination reliable DVF valve and atmospheric backflow preventer in one unit
  • Incorporates all features of DV and DVF Series valves
  • I.A.P.M.O. and A.S.S.E listing approved
  • City of Los Angeles listing approved
  • Canadian Standards Association listing approved

Specifications

  • 24 VAC 50/60 cycle solenoid power requirement: 0.30 A (7.2 VA) inrush current; 0.19 A (4.6 VA) holding current
  • Solenoid coil resistance: 54 Ohms
  • Anti-siphon must be installed at least 6" (15,2 cm) above the highest point of water in the pipe and sprinklers it serves.
  • No valve can be located downstream of the anti-siphon valve.
  • UPC Sec. 1003 (2)
  • For use in cold water only, less than 110¡ F (43¡ C)
  • Anti-siphon valves must not be operated continuously for more than twelve (12) hours.
  • Consult local codes.

Dimensions

  • Height: 6 1/4" (15,8 cm)
  • Length: 6 1/10" (15,5 cm)
  • Width: 3 1/5" (8,1 cm)

Operating Range

  • Flow: 075-DV
    075-ASVF Flow: 0.2 to 22 GPM (0,05 to 5,0 m 3 / h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,75 m 3 / h; 0,21 l/s) or any Xerigation ® products application, use RBY-075-200MX filter installed upstream.
  • Flow: 100-DV, 100-DVF
    100-ASVF Flow: 0.2 to 40 GPM (0,05 to 9,08 m 3 / h; 0,01 to 2,52 l/s). For flows below 3 GPM (0,75 m 3 / h; 0,21 l/s) or any Xerigation ® products application, use RBY-100-200MX filter installed upstream.
  • Pressure: 15 to 150 psi (1 to 10 Bars)
  • Water Temperature: up to 110°F (43°C)
  • Ambient air temperature: up to 125°F (52°C)

Models

  • 075-ASVF: 3/4" (20/27)
  • 100-ASVF: 1" (26/34)

Prices for Rain Bird ASVF valves are listed on our price sheets.
(Please note: we have a minimum order size of 30 dollars.)

Want to learn more about Rain Bird DV series valves?
See our DV series installation page for more information.
