Rain Bird DV Series Valves

Prices for Rain Bird DV valves are listed on our price sheets.
(Please note: we have a minimum order size of 30 dollars.)

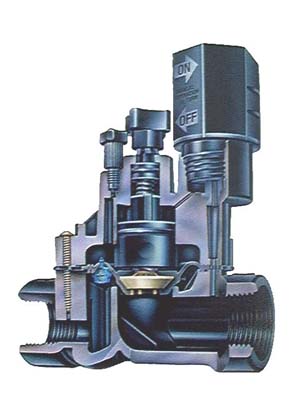

Rain Bird DV Valve

Electric Remote-Control Valves
DV and DVF SERIES
3/4", 1"
(20/27, 26/34)

Primary Application

Economical, irrigation valve for residential and light commercial applications.

Features

  • Double-filtered pilot-flow design for maximum reliability
  • External bleed top manually flush system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Operates in low flow and Xerigation® applications when the RBY filter is installed upstream
  • 1.25" (3,2 cm) stainless steel phillips head screws
  • Slip-by-slip configurations for low-cost, solvent weld installations
  • Unique, easy-to-turn patented pressure-assisted flow control mechanism (DVF models only)
  • Buna-N diaphragm with self-cleaning 90-mesh (200 micron) pilot water filter and captive spring
  • Energy-efficient low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter

Electrical Specifications

  • 24 VAC 50/60 cycle solenoid power requirement- 0.30 A (7.2 VA) inrush current; 0.19 A (4.6 VA) holding current

Dimensions

  • Height
    • DV series: 4 1/2" (11,4 cm)
    • DVF series: 5 3/5" (14,2 cm)
  • Length: 4 1/4" (10,7 cm)
  • Height: 3 1/3" (8,4 cm)

Models

  • 100-DV: 1" (26/34)
  • 100-DV-SS: 1" (26/34)
  • 100-DVF: 1" (26/34)
  • 100-DVF-SS: 1" (26/34)

Operating Range

  • Flow: 075-DV
    0.2 to 22 GPM (0,05 to 5,0 cubic m/h; 0,01 to 1,39 l/s) for flows below 3 GPM (0,75 cubic m/h; 0,21 l/s) or any Xerigation® application, use RBY-075-200MX filter installed upstream
  • Flow: 100-DV, 100-DVF
    0.2 to 40 GPM (0,05 to 10 cubic m/h; 0,01 to 2,78 l/s) for flows below 3 GPM (0,75 cubic m/h; 0,21 l/s) or any Xerigation® application, use RBY-075-200MX filter installed upstream
  • Pressure: 15 to 150 psi (1 to 10 Bars)
  • Temperature: up to 110°F (43°C)
  • Ambient air temperature: up to 125°F (52°C)

Prices for Rain Bird DV valves are listed on our price sheets.
(Please note: we have a minimum order size of 30 dollars.)

Want to learn more about Rain Bird DV series valves?
See our DV series installation page for more information.
