Hunter SRV Series Valves


Prices for Hunter SRV valves are listed on our price sheets.
(Please note: we have a minimum order size of 30 dollars.)


Hunter SRV Valve

1" Electric Remote-Control Valves
Hunter SRV SERIES

Primary Application

Simple operation, reliable performance. The economical residential valve that can handle the toughest conditions.

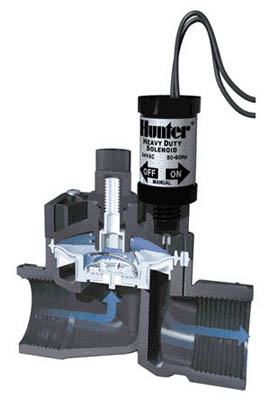

Who said that dependable performance and affordable pricing were mutually exclusive terms when it comes to residential valves! Hunter has made it possible for you to get both, along with the type of solid construction one would expect to cost considerably more. Our SRV features a durable high-grade PVC globe body plus a rugged diaphragm that has been custom-crafted to withstand the challenge of vigorous day-to-day use. In addition, the SRV boasts a diaphragm support to prevent stress failure, an internal manual bleed to keep the valve box dry, and the heavy-duty Hunter solenoid. Plus, to meet the particular needs of each individual system you install, the SRV is available in either flow control or non-flow control models. Built to accommodate a budget as well as it does an irrigation system, that's the simple, reliable Hunter SRV.


Hunter SRV Valve

Features

  • Heavy-duty Hunter solenoid
    Provides dependable operation and long life
  • High grade construction
    Made of durable PVC and stainless steel to resist wear
  • Internal manual bleed
    Easy to use and keeps valve box dry
  • Optional flow control
    Adjust the flow of each station on a system
  • Optional slip configuration
    Permits direct solvent connection to PVC pipe
  • Rigid diaphragm support
    Works to prevent stress failure in tough conditions
  • Flow control
    Choose the option of efficiency

Flow control option

If you really want to maximize the efficiency of the SRV, be sure to ask for the flow control option. This convenient addition to the valve makes it possible to fine tune the flow for each station on an irrigation system, allowing for more effective irrigation of each area of your landscape (and that means healthier turf). Flow control - just another example of how Hunter makes a great product even better.


Electrical Specifications

  • Heavy-duty solenoid: 24VAC, 50/60 cycles
  • Inrush current: 400mA
  • Holding current: 270mA

Dimensions

  • Height: 5"(13 cm)
  • Length: 4 1/2"(11 cm)
  • Width: 2 1/2" (6 cm)
  • Fem ale inlet/outlet: 1" NPT or Slip

Models

  • SRV-100G: 1" plastic globe valve
  • SRV-100G-S: 1" plastic globe valve, slip x slip
  • SRV-101G: 1" plastic globe valve with flow control
  • SRV-101G-S: 1" plastic globe valve with flow control, slip x slip

Operating Range

  • Flow: 1 to 30 gpm (0.23 to 6.8 m3/hr; 3.8 to 1 14 l/min)
  • Pressure: 20 to 150 psi (1.4 to 10.3 bars; 138 to 1034 kPa)
Pressure Loss Through Valve
(PSI)
GPM1" Globe
11.1
51.9
101.9
151.6
203.3
255.0
306.1
Chart based on full open
flow control position.

Warranty

Hunter Industries warrants all Hunter Professional Series SRV valves to be free of defects in materials or workmanship under normal use for a period of two (2) years from the original date of manufacture. If a defect in a Hunter product is discovered during the applicable warranty period, Hunter will repair or replace, at it's option, the product or defective part.


Prices for Hunter SRV valves are listed on our price sheets.
