Large (tan) Waterproof Twist on Wire Connectors

• Use for connecting most "ground" wires to valves
• Suitable for use with two (2) 16 ga. wires plus one stranded valve wire
• No soldering needed
• Available in bags of 15 twist on wire connectors per bag

Small (blue) Waterproof Twist on Wire Connectors

• Use for connecting "hot" wire (or last "ground" wire) to valve
• Suitable for use with one (1) 16 ga. wire plus one stranded valve wire
• No soldering needed
• Available in bags of 20 twist on wire connectors per bag

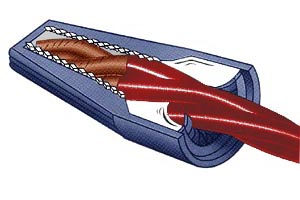

Each waterproof twist on wire connector is prefilled with sealant. Just screw it securely onto the ends of the wires you wish to seal and you're done with the joint. Fast and efficient.

For most valve "ground" connections, you will have a solid white ground wire coming to the joint, a solid white ground wire going to the next valve, and a stranded wire going to the valve solenoid (a total of three wires). For these connections, use one large (tan) waterproof twist on wire connector.

For the last valve "ground" connection, you will have a solid white ground wire coming to the joint and a stranded wire going to the valve solenoid (a total of two wires). For these connections, use one small (blue) waterproof twist on wire connector.

For most valve "hot" connections, you will have a solid red hot wire coming to the joint and a stranded wire going to the valve solenoid (a total of two wires). For these connections, use one small (blue) waterproof twist on wire connector.
